R Tutorial : Residual Analysis for Regression

In this tutorial we will learn a very important aspect of analyzing regression i.e. Residual Analysis. Residual Analysis is a very important tool used by Data Science experts , knowing which will turn you into an amateur to a pro.

Please go through following articles as well to understand basics of Regression

Tutorial : Concept of Linearity in Linear Regression

Tutorial : Linear Regression Construct

R Tutorial : Basic 2 variable Linear Regression

R Tutorial : Multiple Linear Regression

Introduction

Once we have created a Regression Model we must know whether the model is valid or not. Residual analysis is one of the most important step in understanding whether the model that we have created using regression with given variables is valid or not.

Lets take an example which we took in our 2 variable Linear regression tutorial here – R Tutorial : Basic 2 variable Linear Regression and we will build from that. The data set which we will use is INCOME-SAVINGS as in earlier Linear regression tutorial.

We will quickly write R code to create a linear model and then we will discuss about our main topic of Residual analysis

income =  read.csv ("INCOME-SAVINGS.csv")
linearmodel = lm (SAVINGS ~ INCOME , data = income)
summary(linearmodel)

Output :
Call:
lm(formula = SAVINGS ~ INCOME, data = income)

Residuals:
     Min       1Q   Median       3Q      Max
-13036.3  -4958.9   -316.9   5368.1  16969.3

Coefficients:
              Estimate Std. Error t value Pr(>|t|)
(Intercept) -1.099e+04  2.459e+03  -4.469 0.000235 ***
INCOME       2.970e-01  6.012e-03  49.402  < 2e-16 ***
---
Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1

Residual standard error: 7327 on 20 degrees of freedom
Multiple R-squared:  0.9919,	Adjusted R-squared:  0.9915
F-statistic:  2441 on 1 and 20 DF,  p-value: < 2.2e-16

Now that we have our basic model ready. Lets understand what residuals are and how to interpret them.

What are Residuals ?

Regression models usually are of the form

Output =  [ Constant + Input ] + error

i.e it consists of 2 types of terms Deterministic and Stochastic.

i.e Output = Deterministic + Stochastic

In this case the regression equation which we generated  is

SAVINGS = -10990 + 0.297 * INCOME

which means for the data that we used for regression which already has historical actual values of savings, we can generate predicted savings and we can add it to our income data set as SAVINGS_Predicted.

Now our predictions for each of these data will not exactly watch the observed savings value. The difference between observed and predicted values is called error residual.

Residual = Observed value – Predicted Value

i.e as in the form written above the stochastic component is our error residual.

in our case Residual = SAVINGS – SAVINGS_Predicted

income$SAVINGS_Predicted  = predict(linearmodel)
income$Residual = income$SAVINGS - income$SAVINGS_Predicted
head(income)

Output:

  YEAR SAVINGS INCOME SAVINGS_Predicted Residual
1 1974   12298  64968          8303.023 3994.977
2 1975   14196  69233          9569.654 4626.346
3 1976   17320  73824         10933.101 6386.899
4 1977   19995  85267         14331.474 5663.526
5 1978   23601  91507         16184.646 7416.354
6 1979   24213  99632         18597.630 5615.370

Lets plot these predicted values vs the residuals.

plot(income$SAVINGS_Predicted,income$Residual,pch=21,bg="red",col="red")
abline(0,0)

residual_rplot

Here in this plot y =0  is our regression line. So any points above regression line have positive residuals and points below regression line have negative residuals.

How to interpret Residuals ?

What we should look for here is for patterns. If we see some set patterns for residual that would mean that some of the predictor information is leaking in as error implying we have to look for an explanatory variable to include in the model to account for that leaked pattern.

We manually created a residual plot and residuals here but R model already has computed the residuals for us and they are a part of a variable called as resid inside the model. In our case we can access them using linearmodel$resid

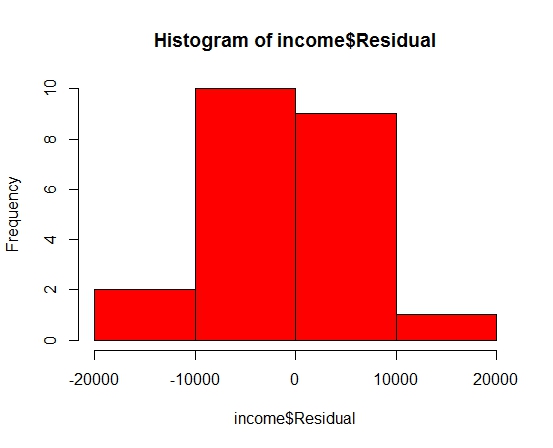

Another very important point that we need to check is that our residuals follow roughly normal distribution. We can do so by checking histogram of residuals. If the histogram of residuals looks normal then we have a valid model.

hist_residual

How to interpret Patterns in Residual Plots ?

Let us now look at few residual plots for other data sets and other models [not necessarily of actual linear models and may represent erroneous cases] and let is see how to interpret  these residual plots.

resid-plots

Residual Plot ( a )

  • Residuals are randomly distributed around regression line
  • Residuals follow normal distribution
  • Residuals are Homoscedastic.
  • Linear model is valid.

Residual Plot ( b )

  • Residuals are non randomly distributed around regression line
  • Residuals increase as the predicted value increases, which could mean that we might be missing a variable or two and some predictive pattern is being leaked as a residual.
  • Residuals are Homoscedastic.
  • Linear model is not valid ( if it has intercept ), check for explanatory variables which might explain the linear residual or the model has failed to account for intercept
  • Or the plot does not belong to a linear model at all another option is that the model might be a model forced to pass through origin i.e a non intercept model

Residual Plot ( c )

  • Residuals are non randomly distributed around regression line
  • Residuals are Homoscedastic
  • Residuals have curve pattern to them.
  • Linear model is not valid. Curved residual pattern might mean that we may have to fit a polynomial of some order to explain the curved pattern of residuals.

I sincerely hope , the tutorial will be useful for everyone in helping them to understand validity of Regression model using residual plots. Please send me your feedback and suggestion and share the knowledge.

Happy Learning !!!

To get more understanding on Residual analysis and diagnostic plots please read R Tutorial : How to use Diagnostic Plots for Regression Models
